Ball Screw Bearing

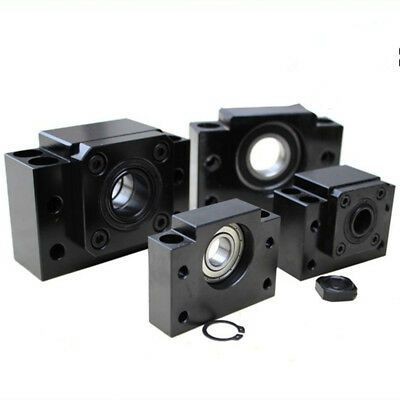

Ball screw bearing also called ball screw support unit. The bearing for ball screws is used as fixed end support bearings for ball screw. They are designed to take the axial and radial load. These end support ball bearings are designed so that the bearing stiffness is greater than conventional bearings, which allows the machine structure to hold accurate position under heavy load.

EMAIL

1.  The ball screw bearings  Product Introduction

The ball screw bearings are divided into two types as following:

The BK,EK,FK fixed-side support unit contains two angular contact bearings that provide both axial and rotational support for the ball screw.

2. The BF,EF,FF supported-side support unit has only a standard ball bearing that provides rotational support on the end of the ball screw opposite of where the drive occurs (typically a motor or pulley).

3. Our standard ball screws are supplied with machining that will work with these supports without modification.



BK type

thrust pillow block fixed

BK10,BK12,BK15,BK17,BK20,BK25,BK30,BK35,BK40

BF type

radial simple support

BF10,BF12,BF15,BF17,BF20,BF25,BF30,BF35,BF40

EK type

fixed side

EK10,EK12,EK15,EK20

EF type

floated side

EF10,EF12,EF15,EF20

FK type

flange mount thrust bearing

FK10,FK12,FK15,FK20,FK25,FK30

FF type

flange mount simple support

FF10,FF12,FF15,FF20,FF25,FF30


Advantage

1.High-speed operation
2.Low friction and noise
3.High precision, duration, and reliability
4.Smooth movement
5.High efficiency of transferring

Application

Ball screw bearing that achieves low noise, small torque fluctuations and long-term maintenance-free .

Therefore it’s widely used in automatic controlling machine,general industry machinery,printing, paper-processing, automatic machines, textiles, robot, measuring instruments, medical equipment, X-Y table,CNC route grinding machine, cutting bending machine ,medical equipment etc.

4.Deliver,Shipping And Serving

Ball screw package is plastic bag+box case or wooden case.

1. Standard Items:  within 7working days.

2. Nonstandard Items:  within 20working days.

3. Actual delivery time is depend on different products and different quantity.


5.FAQ


Q: Are you a trading company or manufacturer?
A: We are the manufacturer with over 10 year`s experience in this field.

Q: What`s the product range?
A: Our leading products include linear guide rail ,linear module, industrial robot, ball screw, ball spline, support unit, gear rack and pinion etc.

Q: What payment method do you accept?
A: T/T, L/C and Western Union are available for us.

Q: What's the delivery time?
A: It's up to the order quantity and our production schedule, usually 5-10 days after the payment confirmed.

Q: Can you strictly follow the instructions of the tolerance and precision?
A: Yes, we strictly do the machining according to the customer approved drawing .
