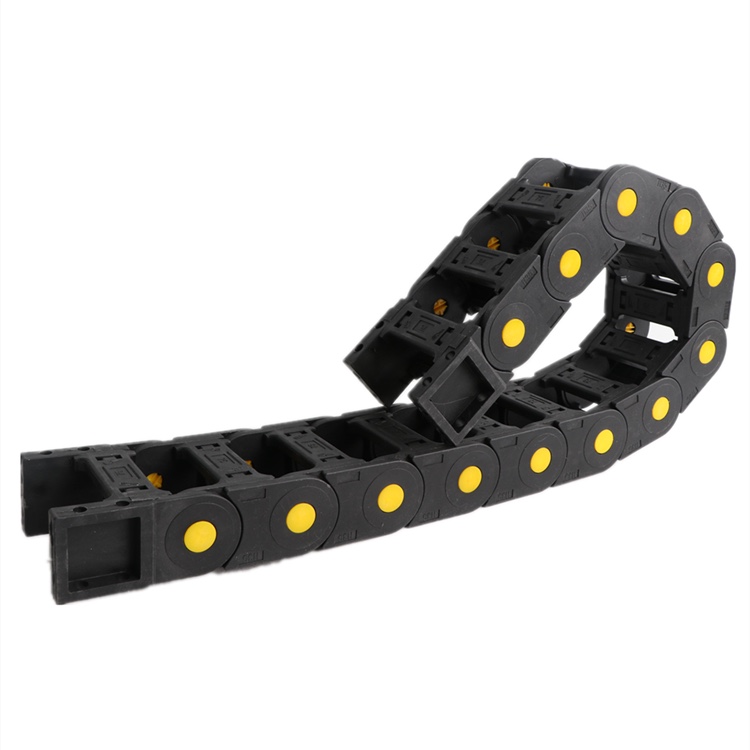

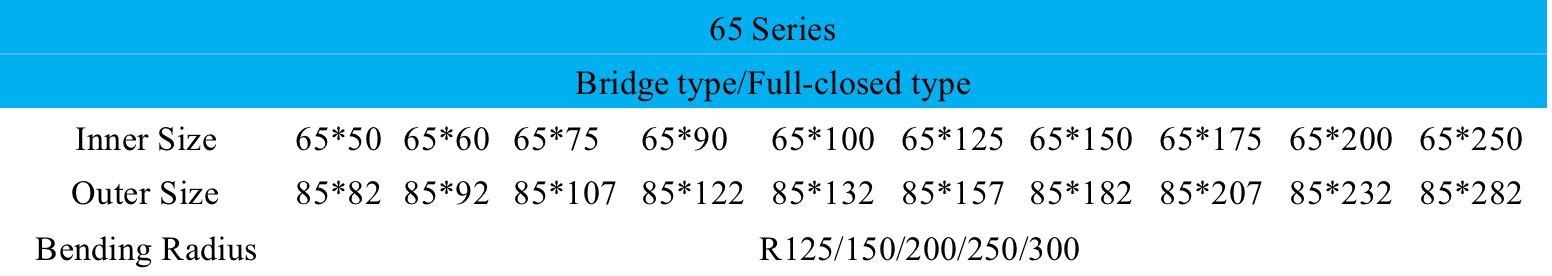

Drag Chain

Bridge type/Full-closed type

Inner Size

7*7

10*10

10*15

10*20

15*15

15*20

15*30

15*40

Outer Size

10*12

15*18

15*23

15*28

20*23

20*29

20*39

20*49

Bending Radius

R18

R28/38/48

Bridge type/Full-closed type

Inner Size

18*18

18*25

18*37

18*50

Outer Size

23*28

23*25

23*47

23*60

Bending Radius

R28/38/48/75

Bridge type/Full-closed type

Inner Size

25*25

25*38

25*50

25*57

25*70

25*77

25*103

Outer Size

40*44

40*57

40*69

40*76

40*89

40*96

40*122

Bending Radius

R55/75/100/125/150

Bridge type/Full-closed type

Inner Size

30*25

30*38

30*50

30*57

30*70

30*77

30*103

Outer Size

45*45

45*58

45*70

45*77

45*89

45*96

45*123

Bending Radius

R55/75/100/125/150

Bridge type/Full-closed type

Inner Size

35*50

35*60

35*75

35*90

35*100

35*125

35*150

35*175

35*200

35*250

Outer Size

55*75

55*85

55*100

55*115

55*125

55*150

55*175

55*200

55*225

55*275

Bending Radius

R75/100/125/150/200/250

Bridge type/Full-closed type

Inner Size

45*50

45*60

45*75

45*90

45*100

45*125

45*150

45*175

45*200

45*250

Outer Size

65*77

65*87

65*102

65*117

65*127

65*152

65*177

65*202

65*227

65*277

Bending Radius

R75/100/125/150/200/250

Bridge type/Full-closed type

Inner Size

55*50

55*60

55*75

55*90

55*100

55*125

55*150

55*175

55*200

55*250

Outer Size

75*80

75*90

75*105

75*120

75*130

75*155

75*180

75*205

75*230

75*280

Bending Radius

R100/125/150/200/250/300
